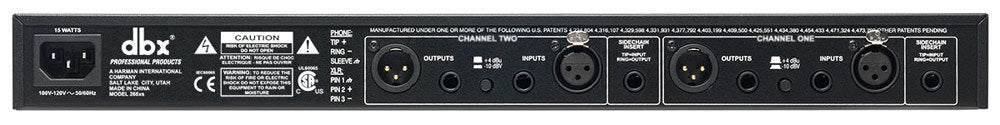

| Input Connectors |
1/4″ TRS & Female XLR (pin 2 hot) |
| Input Type |
Electronically balanced/unbalanced, RF filtered |
| Input Impedance |
40 kΩ balanced / unbalanced |
| Max Input Level |
> +22 dBu balanced or unbalanced |
| Output Connectors |
1/4″ TRS & Male XLR (pin 2 hot) |
| Output Type |
Impedance-balanced/unbalanced, RF filtered |
| Output Impedance |
+4 dBu: 100Ω balanced, 50Ω unbalanced; -10 dBu: 1kΩ balanced, 500Ω unbalanced |
| Max Output Level |
>+21 dBu into 2kΩ / >+18 dBm into 600Ω |
| Sidechain |
1/4″ TRS insert (Tip = Input, Ring = Output) |
| Compressor Threshold Range |
-40 dBu to +20 dBu |
| Compressor Ratio |
1:1 to Infinity :1 |
| Compressor Attack/Release |
AutoDynamic™ (program-dependent) |
| Expander/Gate Threshold |
-60 dBu to +15 dBu |
| Expander/Gate Ratio |
1:1 to 4:1 |
| Expander/Gate Attack |
< 100 µs |
| Frequency Response |
20 Hz–20 kHz, +0/-0.5 dB |
| Bandwidth |
0.35 Hz–90 kHz, +0/-3 dB |
| Noise |
<-93 dBu unweighted (22 kHz) |
| THD+Noise |
< 0.2% typical @ 1 kHz |
| Dynamic Range |
>114 dB (unweighted) |
| Interchannel Crosstalk |
<-95 dB (20 Hz–20 kHz) |
| CMRR |
>40 dB, typically >55 dB @1 kHz |
| Stereo Coupling |
True RMS Power Summing™ |
| Power Consumption |
15 Watts Max |
| Operating Voltage |
100–120 VAC & 230 VAC (50/60 Hz) |
| Dimensions |
19″ x 5.75″ x 1.75″ (Rack 1U) |
| Weight |
4.84 lbs (2.19 kg) |
| Shipping Weight |
6.6 lbs (2.99 kg) |
