| Type |
Powered Studio Subwoofer |
| Configuration |
Front-loaded, Vented Subwoofer |
| Woofer |
8" Glass Aramid Composite |
| Frequency Response |
34.5 Hz – 133 Hz |
| Max SPL |
112.8 dB |
| Amplifier Type |
Class D |
| Amplifier Power |
109 W @ 1% THD+N @ 46Hz |
| THD + N |
≤ 0.1% @ -3dB of max power output 35–133Hz |
| Signal-to-Noise Ratio |
92 dB |

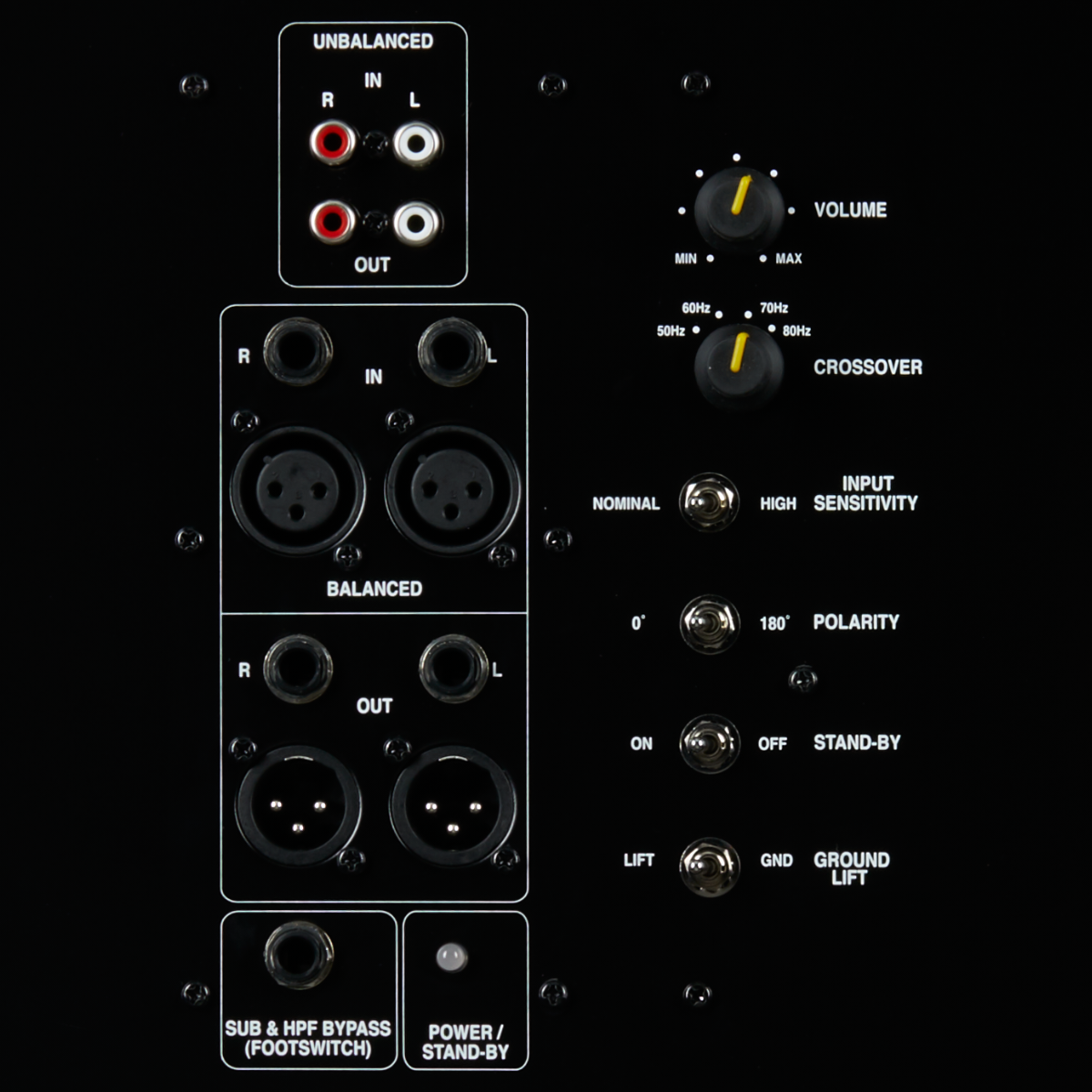

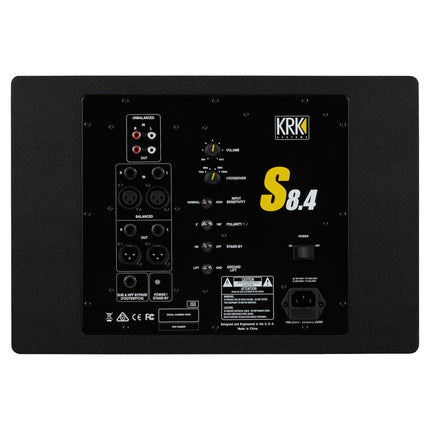

| Inputs |
XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch |
| Outputs |
XLR L/R, 1/4" TRS L/R, RCA L/R |
| Controls |
Polarity, Input Sensitivity, HPF Bypass (with footswitch), Four-position Crossover |
| Ground Lift |
On/Off |
| Enclosure |
15 mm & 18 mm Reinforced MDF, Black Vinyl Wrap |
| Dimensions (H x W x D) |
11" x 16.125" x 11.5" (279 mm x 410 mm x 292 mm) |
| Weight |
26.5 lb (12 kg) |
| Applications |
Studio monitoring, mixing, mastering, broadcast, production |
