| Type |
Active Studio Subwoofer |
| Woofer |
8" Woven Glass Fiber Composite |
| Frequency Response |
30 Hz – 200 Hz |
| Peak SPL |
100 dB (@ 1 meter) |
| Amplifier Type |
Class AB |
| Power Output |
50 W RMS |
| Input Gain Control |
-30 dB to +6 dB (continuously variable) |
| Low-Pass Filter |
50 – 130 Hz (continuously variable) |
| High-Pass Filter |
Removes frequencies below 80 Hz from outputs |

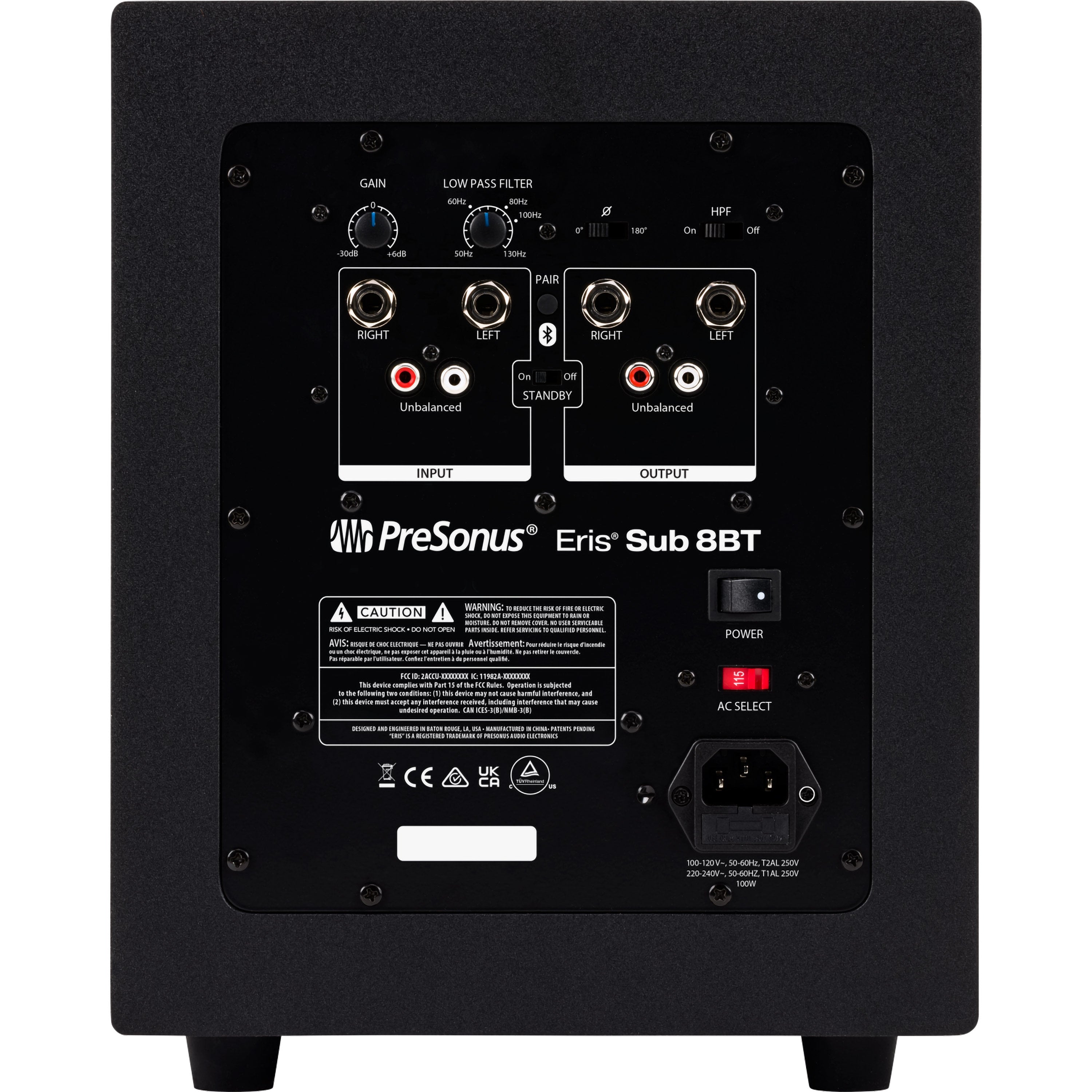

| Inputs |
2 x Balanced 1/4” TRS, 2 x Unbalanced RCA |
| Outputs |
2 x Balanced 1/4” TRS, 2 x Unbalanced RCA (pass-through) |
| Polarity Switch |
0° or 180° |
| Ground Lift Switch |
On/Off |
| Bypass Footswitch |
On/Off (optional footswitch) |
| Cabinet Material |
Vinyl-laminated Medium-Density Fiberboard (MDF) |
| Connectivity |
Bluetooth® 5.0 Wireless Audio |
| Dimensions (H x W x D) |
11.77" x 9.8" x 12.7" (299 mm x 250 mm x 323 mm) |
| Weight |
Not specified |
| Protections |
RF interference, Output-current limiting, Over-temperature, Turn-on/off transient, Subsonic filter |
