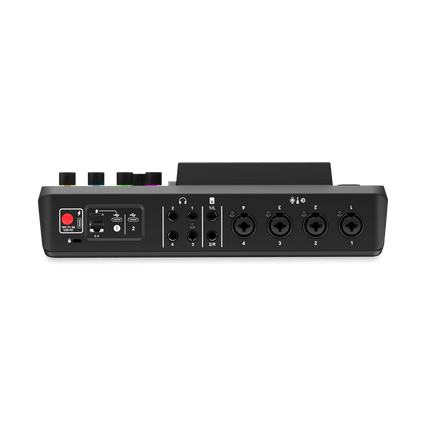

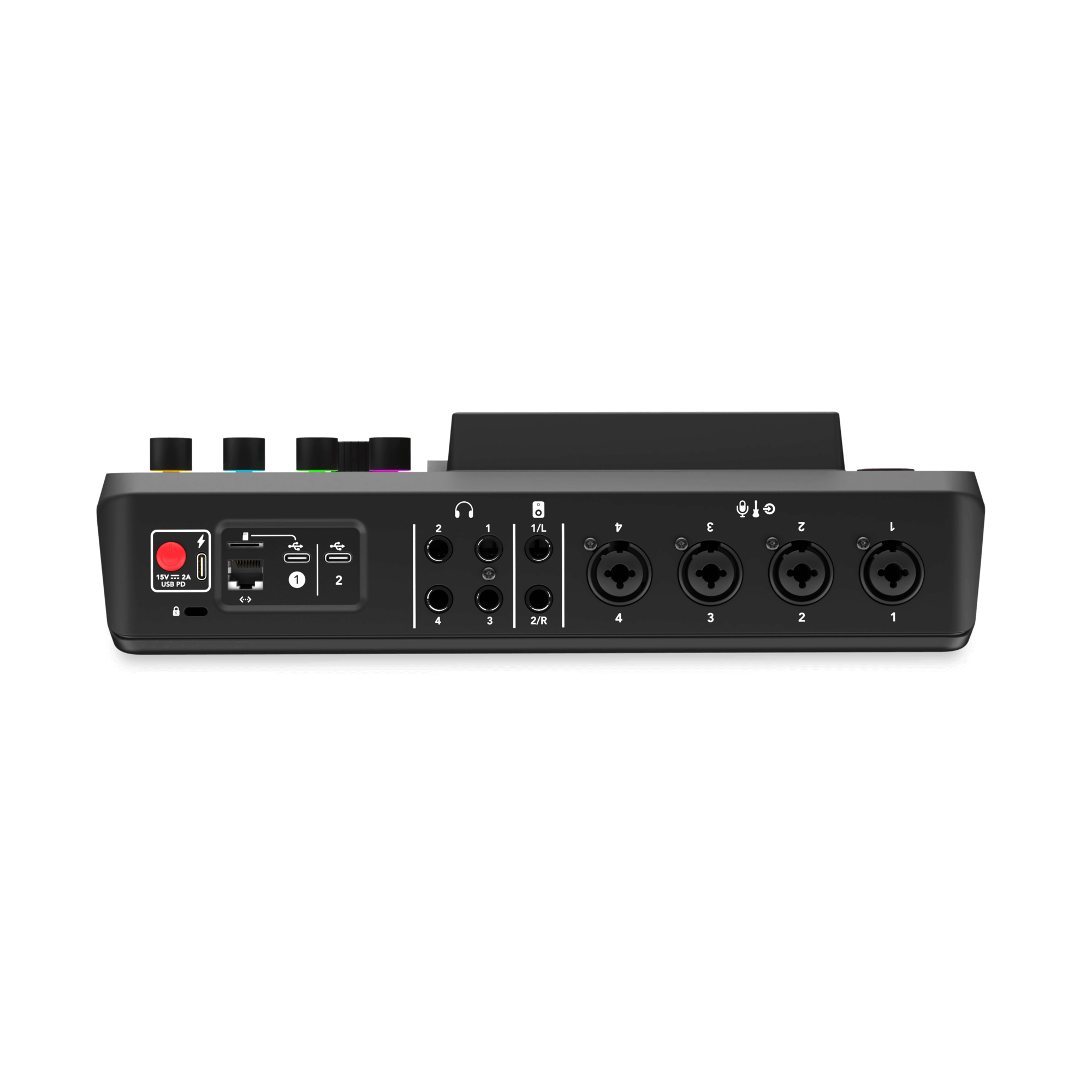

| Inputs |
4 x Neutrik® combo jacks (mic/line/instrument) |
| Preamps |
Revolution Preamps™ (-131.5 dBV EIN, 76 dB gain, ultra-low noise) |
| Outputs |
2 x balanced line, 4 x high-power headphone outputs |
| USB Interfaces |
Dual USB-C (multi-device connection, mix-minus support) |
| Wireless |
Built-in receiver for up to 2 x RØDE Series IV transmitters |

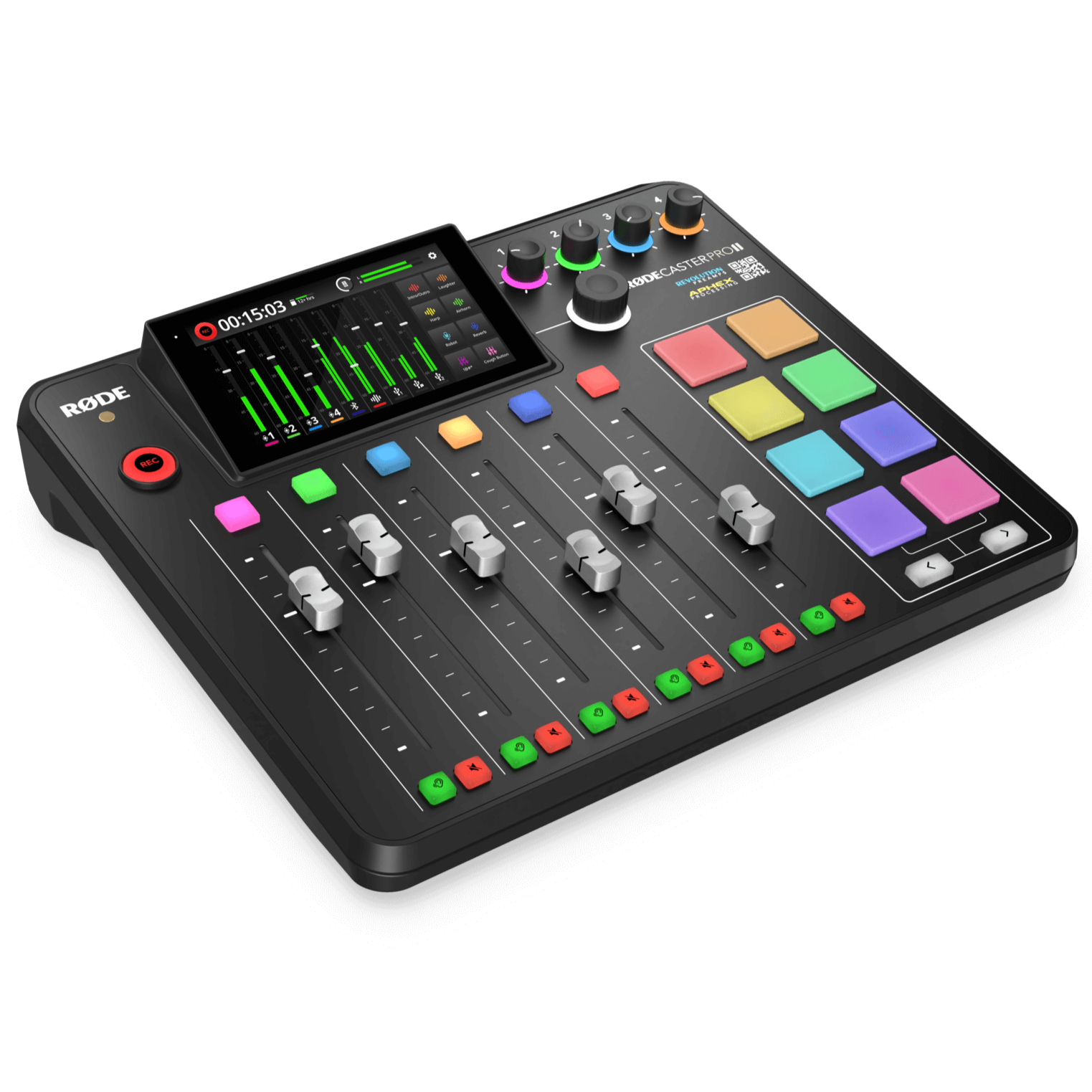

| Channels |
9 (6 physical faders + 3 virtual faders, fully assignable) |
| SMART Pads |
8 programmable pads (8 banks = 64 actions) |
| Processing |
APHEX® effects: Aural Exciter™, Big Bottom™, Compellor™, EQ, compressor, de-esser, noise gate, HPF |
| Recording |
Multitrack/stereo to microSDHC/XC, USB drive, or computer |
| Bit Depth / Sample Rate |
32-bit (USB1) / 24-bit (USB2), 48 kHz |
| Screen |
5.5-inch HD touchscreen with haptic feedback & rotary encoder |
| Connectivity |
Bluetooth®, Wi-Fi (2.4/5 GHz), Ethernet (100/1000) |
| Storage |
4 GB internal for SMART pads |
| Power |
USB-C PD (15V, 2A, 30W) |
| OS Compatibility |
macOS 10.15+, Windows 10/11 |
