| Weight |
1.3 kg |

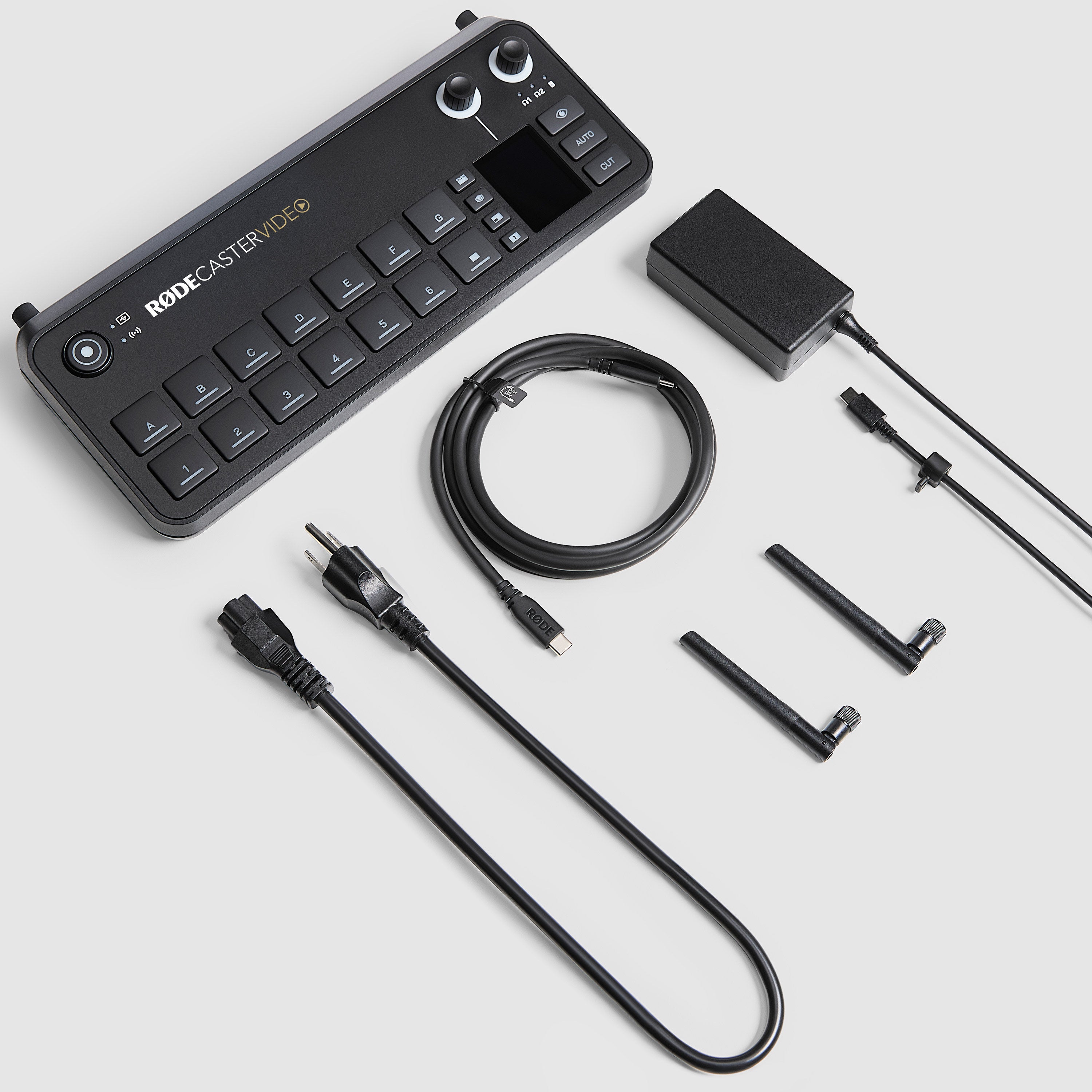

| Power |
Via USB-C (bus/AC adapter included) |
| Processor |
High-performance Octa-Core |

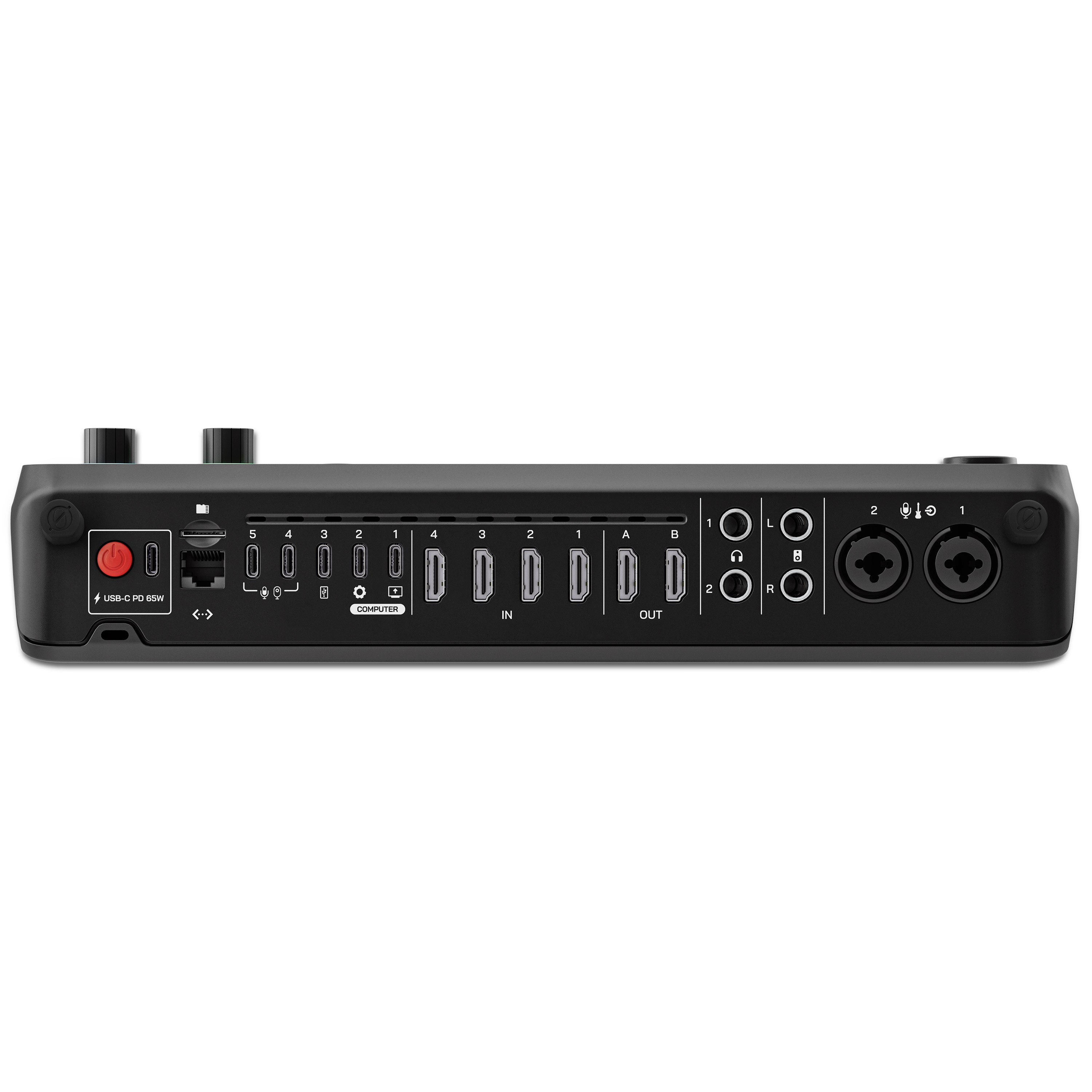

| Video Inputs |
Up to 6 HDMI (1080p, 24–60 fps) |
| Video Outputs |
2× HDMI (preview/program/multi-view) |
| Scenes |
7 customizable, 9 layers simultaneous |
| Switching |
Auto-switch based on audio input |
| Chroma Keys |
2 (green/blue) |
| Media Players |
2 simultaneous (MP4, PNG, JPG, WAV) |
| Audio Preamps |
Ultra-low-noise, high-gain Revolution Preamps |
| Audio Processing |
APHEX (Compressor, EQ, De-esser, Noise Gate, Aural Exciter, Big Bottom, HPF, Pan) |
| Audio Inputs |
2× XLR/TRS combo, 2× Wireless Series IV, Bluetooth, 3× USB |
| Audio Outputs |
2× 6.35mm line outs, 2× headphone outs, USB multichannel (20 sources total) |
| Bluetooth |
5.3 (stereo input / phone calls) |
| Recording (Video) |
MP4 (H.264/AVC) up to 1080p60 |
| Recording (ISO Video) |
6 inputs + program (up to 1080p30 each) |
| Recording (Audio) |
WAV stereo mix + 9 independent stereo tracks |
| Streaming |

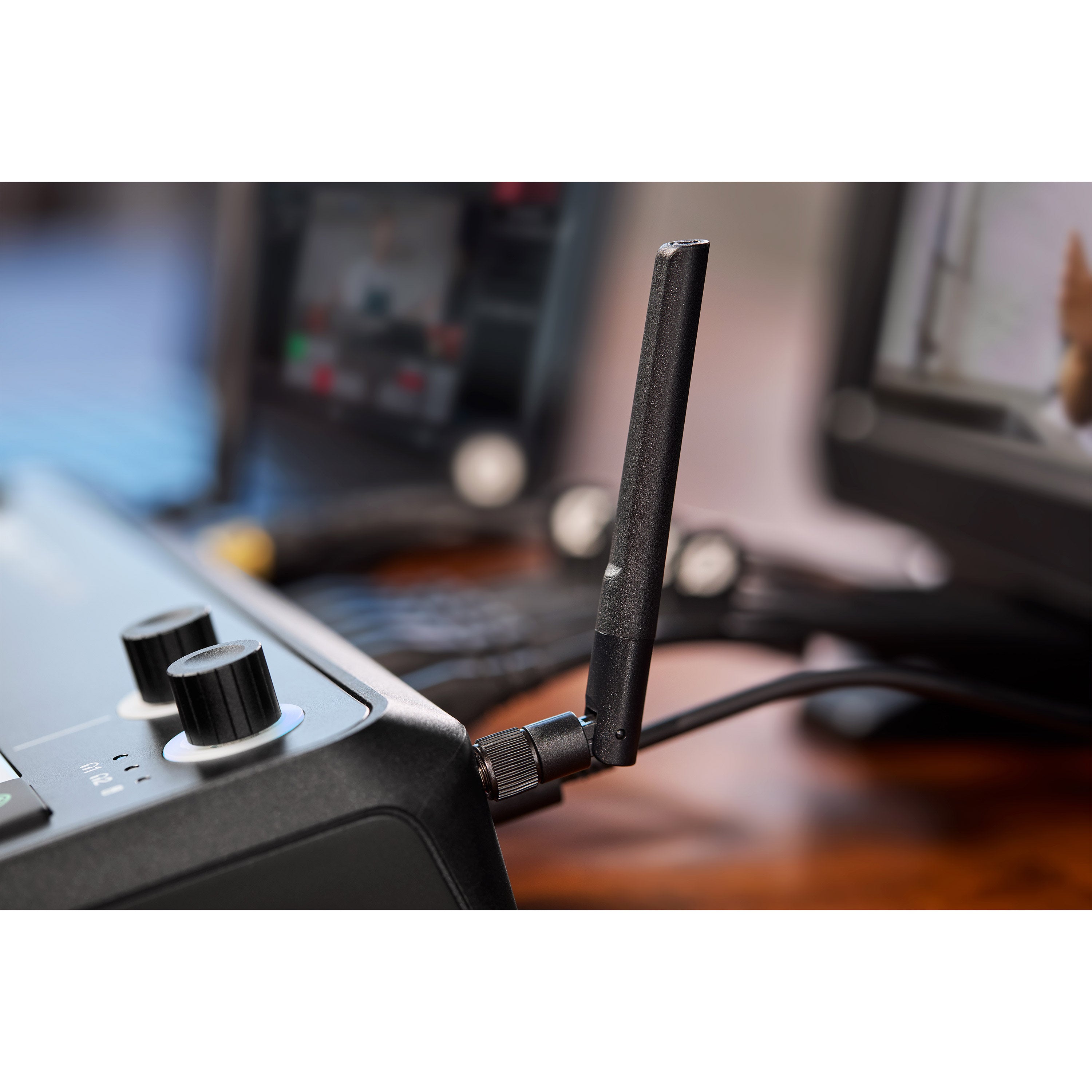

Direct RTMP/RTMPS via Ethernet or Wi-Fi 6 |
| Storage |
microSD, external USB (exFAT) |
| Dimensions |
306 × 133 × 61 mm |
| OS Compatibility |
macOS 11+, Windows 10/11 |
| Software |
RØDE Central Companion (Scene Builder, Auto-switching, Audio Mixer, Stream Profiles, Remote Control) |
