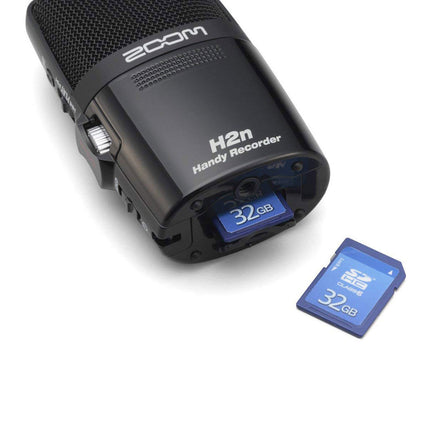

| Recording Media |
16MB–2GB SD cards, 4GB–32GB SDHC cards |
| Built-in Memory |
Up to 1 min @ 96kbps MP3 |

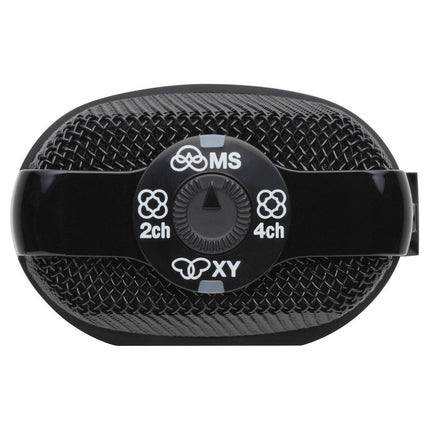

| Mic Arrangements |
90° X/Y stereo, MS stereo (adjustable side mic level) |
| Recording Modes |
MS, XY, MS+XY (2ch), MS+XY (4ch) |
| Microphone Types |
Directional (XY, MS mid), Bidirectional (MS side) |
| Max SPL Input |
120 dB SPL (directional), 122 dB SPL (bidirectional) |
| File Formats |
WAV (16/24-bit, 44.1/48/96kHz, BWF compliant), MP3 (56–320kbps) |
| A/D & D/A Conversion |
24-bit, 128× oversampling |
| Signal Processing |
32-bit |
| Recording Time (2GB card) |
3h:08m (44.1kHz/16-bit WAV), 34h:43m (128kbps MP3) |
| Effects |
Low-cut (80Hz), Compressor/Limiter (3 types each), Normalize, Divide |
| Tuner & Metronome |
Chromatic tuner, guitar/bass tuner, metronome (40–250 BPM) |
| Playback Functions |
Loop, A-B repeat, speed control (50–150%), pitch shift (±6 semitones) |
| Inputs |
Stereo ⅛" Mic/Line In with Plug-in power (2.5V) |
| Outputs |
Stereo ⅛" Line/Headphone Out (−10 dBm), Built-in speaker (400mW) |
| USB |
Mini-B (USB 2.0 High Speed, 4-in/2-out Audio Interface, SD Card Reader) |

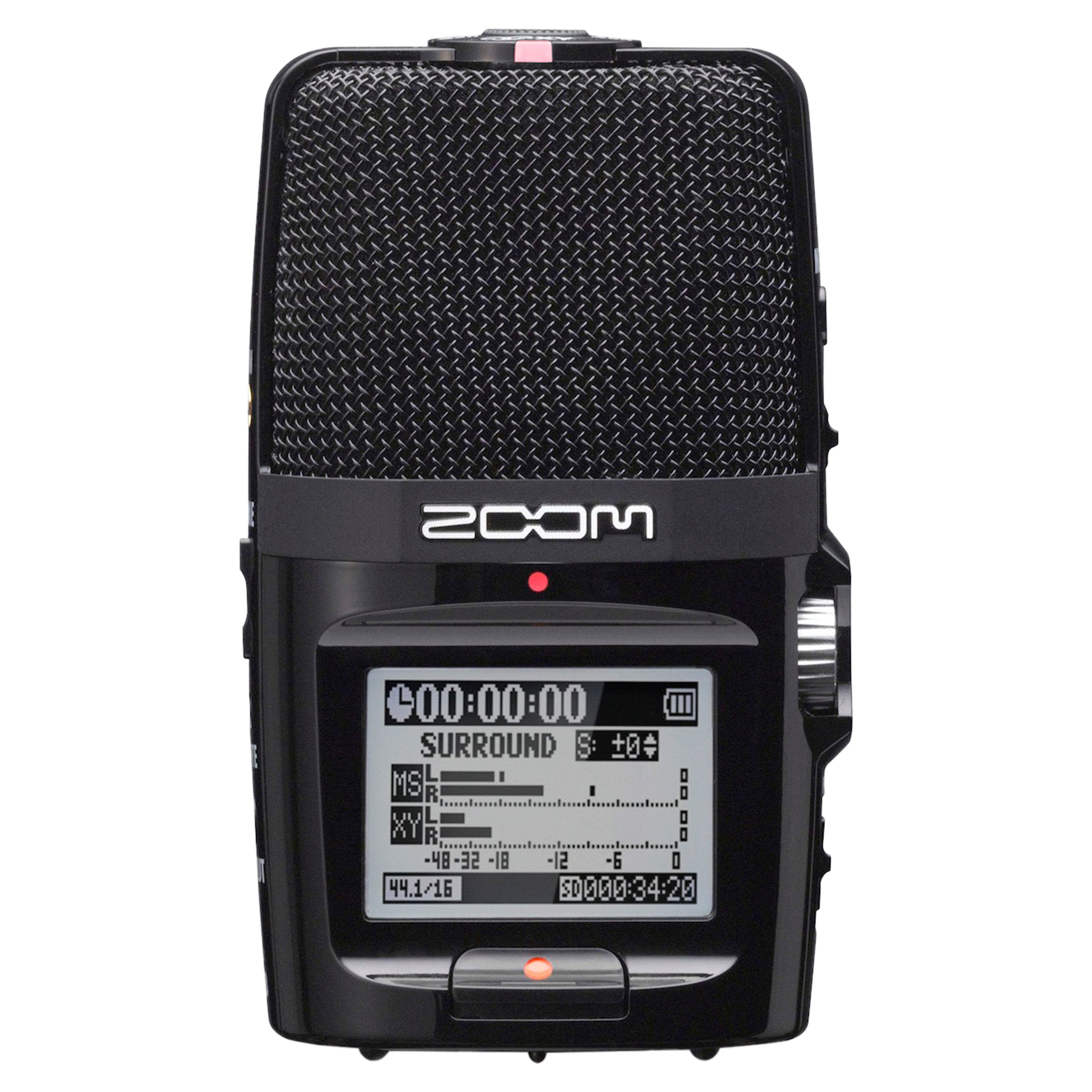

| Display |
128×64 pixels backlit LCD |
| Power |
2 × AA batteries (alkaline/NiMH) or AD-17 adapter |
| Battery Life |
20+ hours (alkaline, 44.1kHz/16-bit WAV) |
| Dimensions |
67.6 × 113.85 × 42.7 mm |
| Weight |
130 g (without batteries) |
